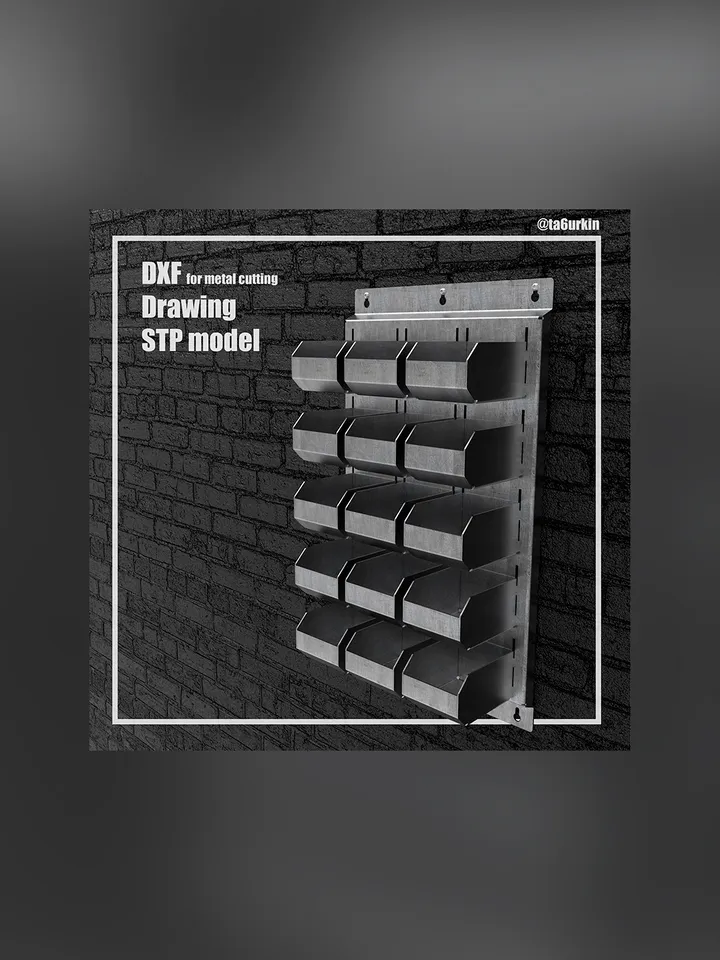

Sheet Metal Plans Drawings Wall Shelf 1 (DXF, PDF)

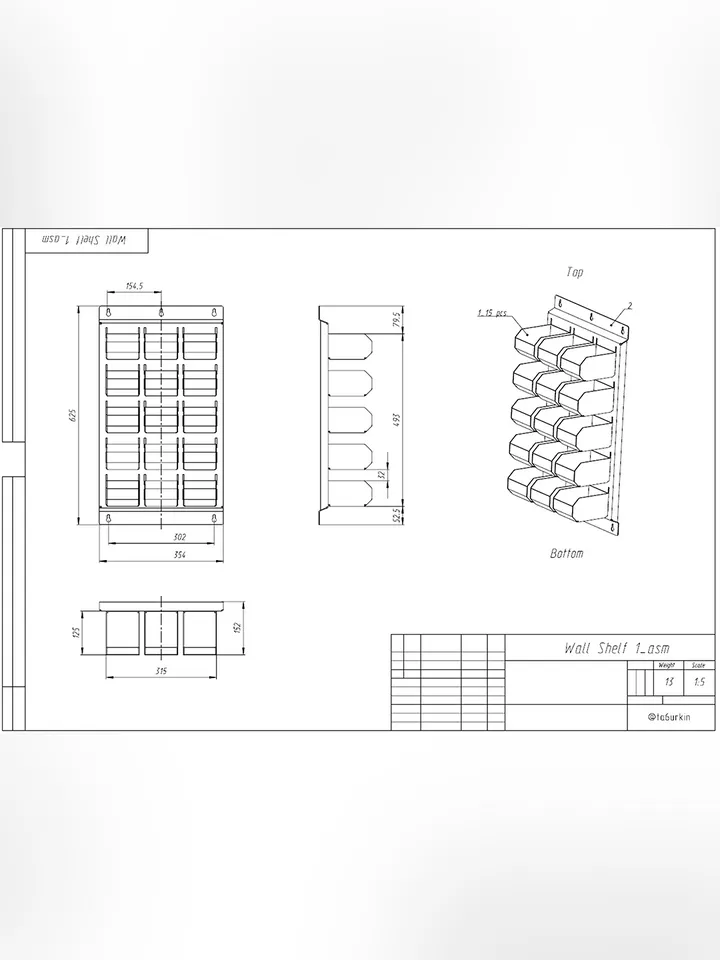

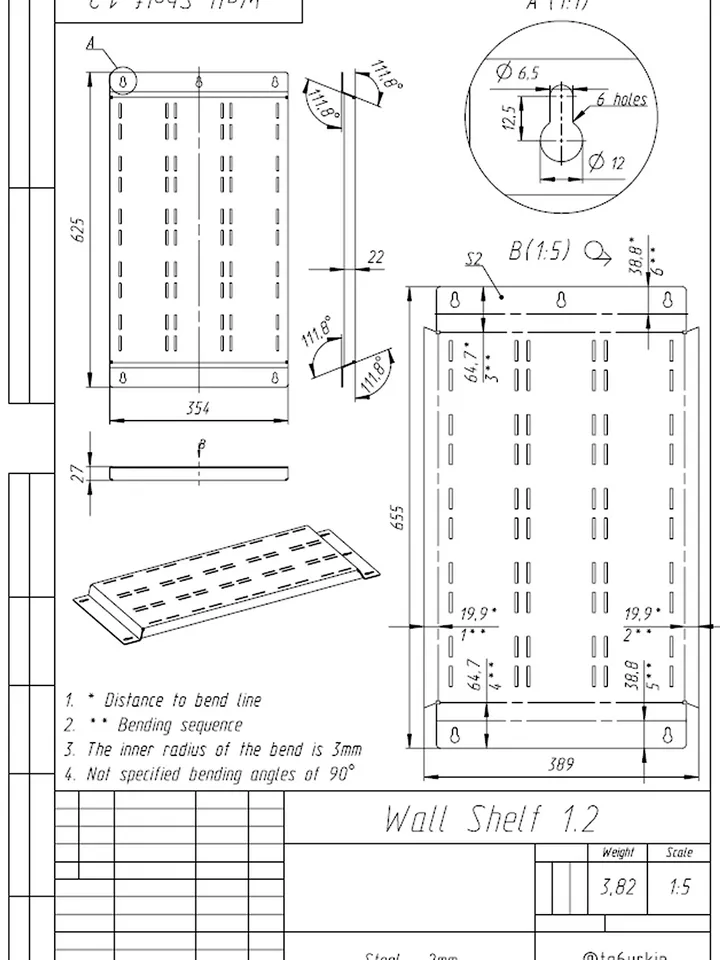

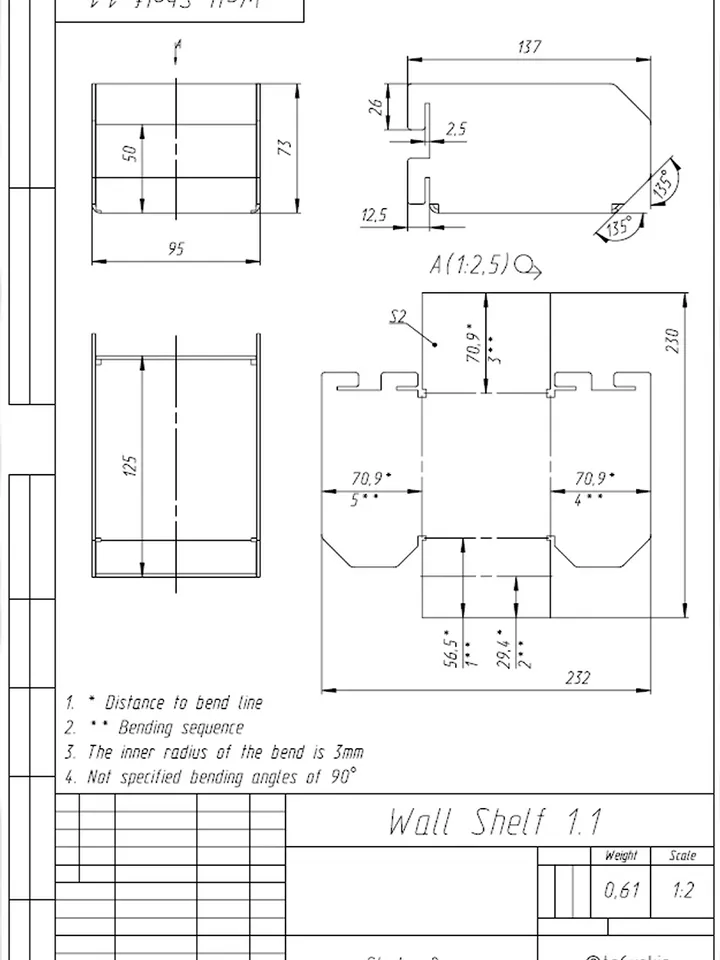

Ask any questions, I will answer them all. This is a digital product (there is no physical product) intended for the independent production of sheet metal products. You should be able to cut out parts on a CNC metal cutting machine. Also, you should be able to bend the parts on a CNC bending machine. Please note that the drawings are distributed on the condition that your finished product is a finished Wall Shelf, the sale of welding kits based on my drawings is strictly prohibited. This project involves the manufacture of shelves for self-use, storage of fasteners and other things. The project involves the manufacture of steel 2 mm. All dimensions are visible on the drawings in the project preview. If you want to make a project from steel of a different thickness, then it is better to edit the dxf files by expanding the grooves. If you want to edit the project in more detail, you can open the STP model in any CAD program. Before cutting out all the shelves, I recommend cutting out one, bending it, and seeing how the grooves fit together. Project composition: 1. dxf – 2pcs; 2. Drawings – 4 pages; 3. Nest for 2500×1250. The files you download are not intended for distribution (in any form, digital or printed), they are intended for you and your production. You have the right to manufacture and sell products created according to these drawings (only finished product) in any quantities. Please note that the drawings are distributed on the condition that your finished product is a finished Wall Shelf, the sale of welding kits based on my drawings is strictly prohibited. Thank you and good luck with your work!
