Welding Project Plans Drawings Stove 3 (DXF, PDF)

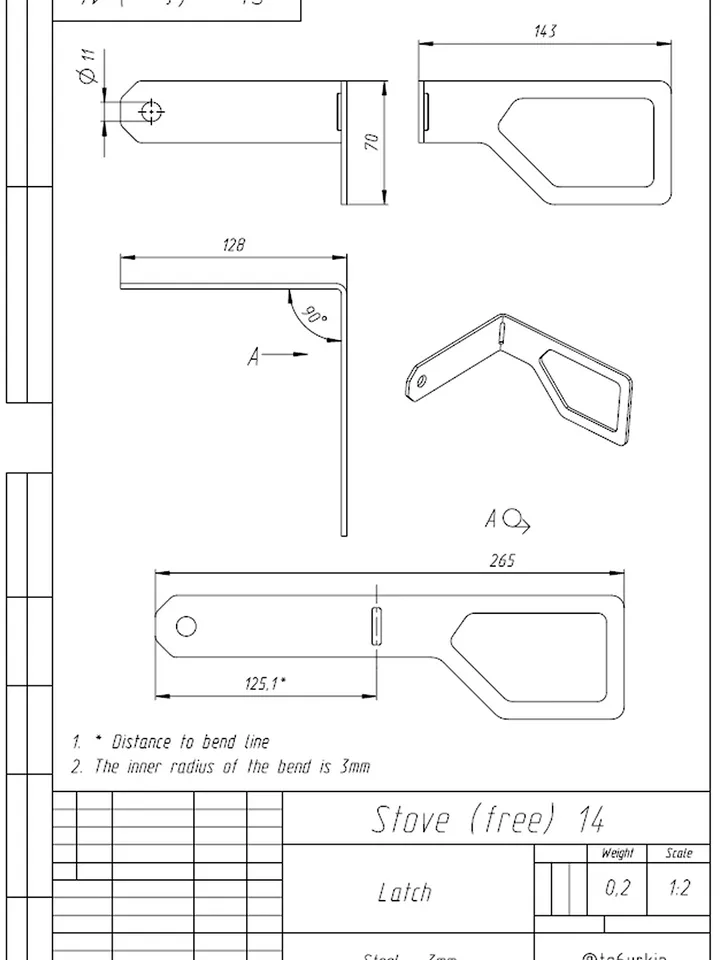

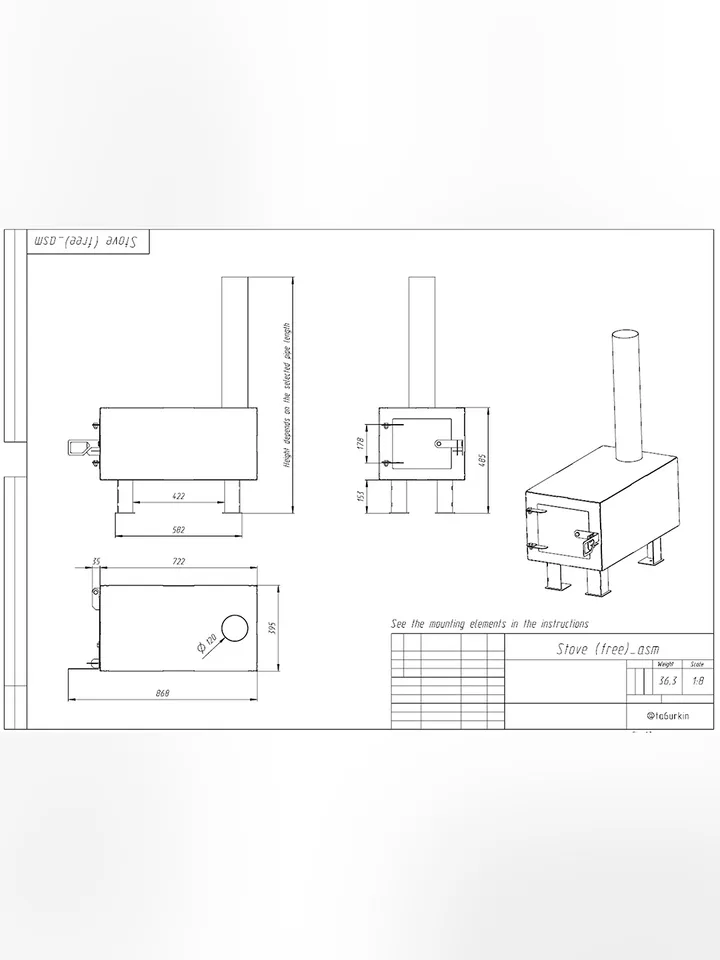

Ask any questions, I will answer them all. This is a digital product (there is no physical product) intended for the independent production of sheet metal products. You should be able to cut out parts on a CNC metal cutting machine. Please note that the drawings are distributed on the condition that your finished product is a finished stove, the sale of welding kits based on my drawings is strictly prohibited. A very simple stove. There is no bend, except for a latch that can be bent by hand, you can see the weight and dimensions on the attached drawings. Material – steel 3mm. All tongue and groove joints are designed for 3mm. This stove is designed for a quick production for itself, I am aware of the design flaws, for example, it is not so convenient to remove the ashes. But everything is done to minimize the parts and you can modify the oven yourself, according to your needs. The files you download are not intended for distribution (in any form, digital or printed), they are intended for you and your production. You have the right to manufacture and sell products created according to these drawings (only finished stove) in any quantities. Please note that the drawings are distributed on the condition that your finished product is a finished stove, the sale of welding kits based on my drawings is strictly prohibited. Thank you and good luck with your work!
