One Car Garage Plan with Porch, 24'x 22' Building Carport Architectural Blueprints +Material List

‏٤٥٫٧٨ US$

يدوي الصنع

رقمي

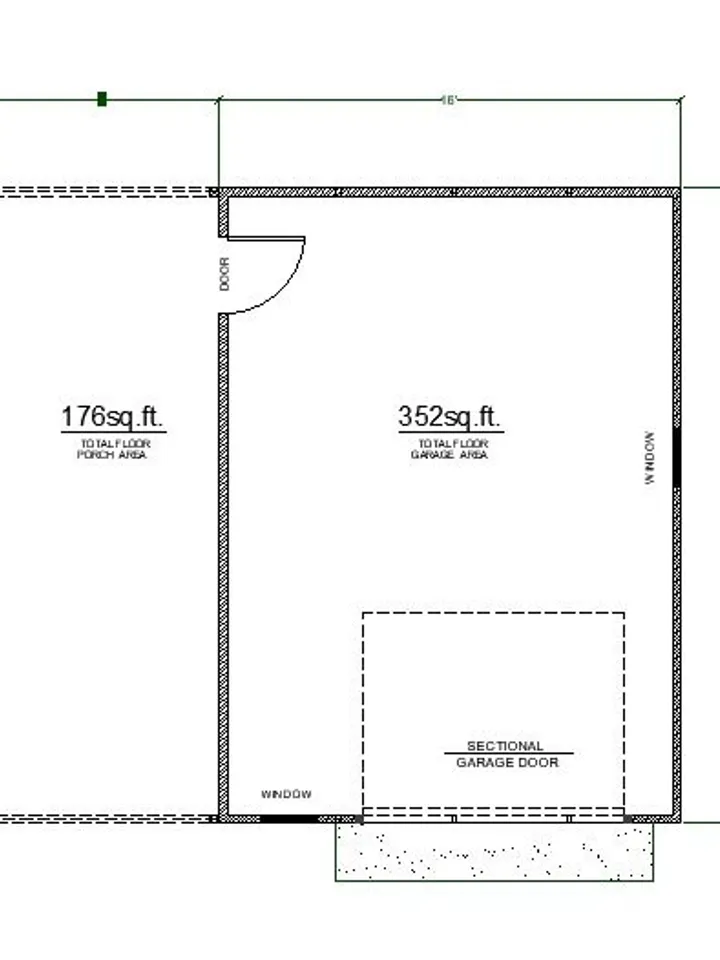

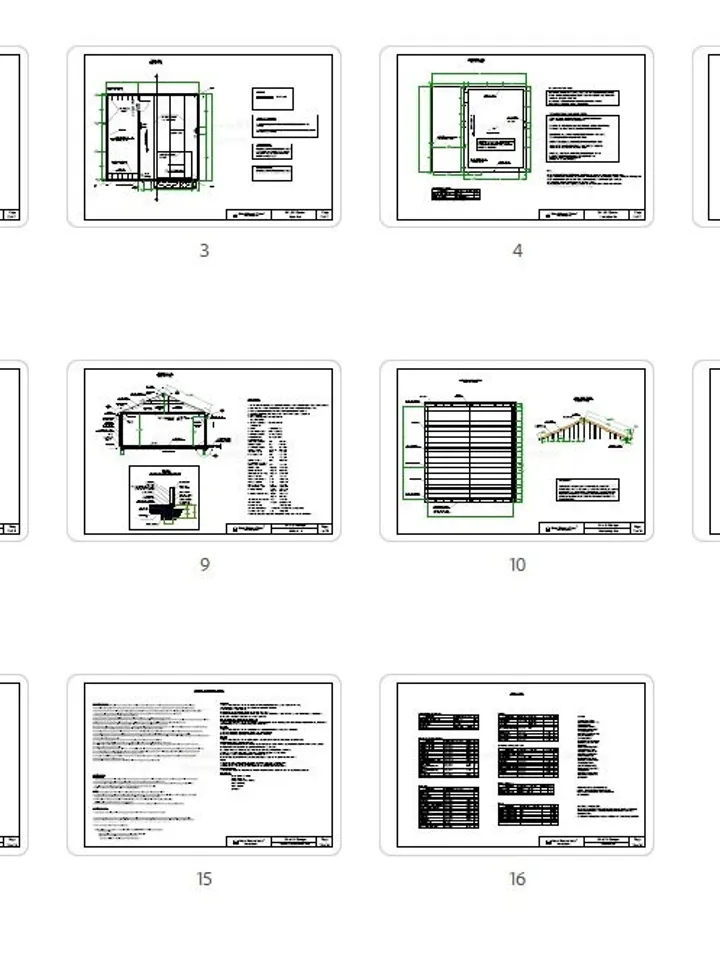

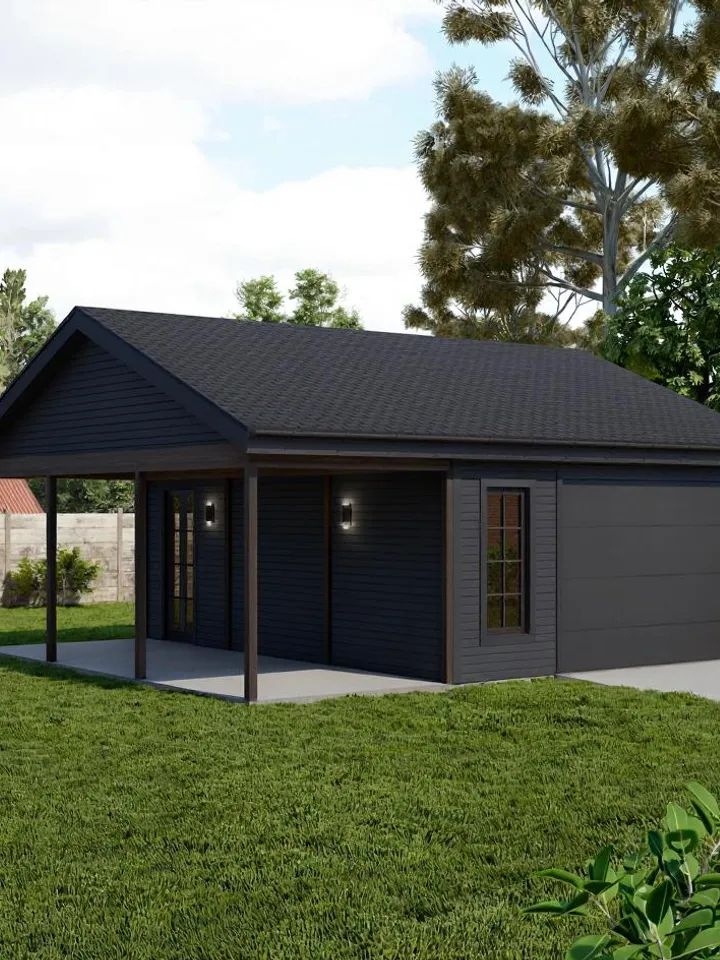

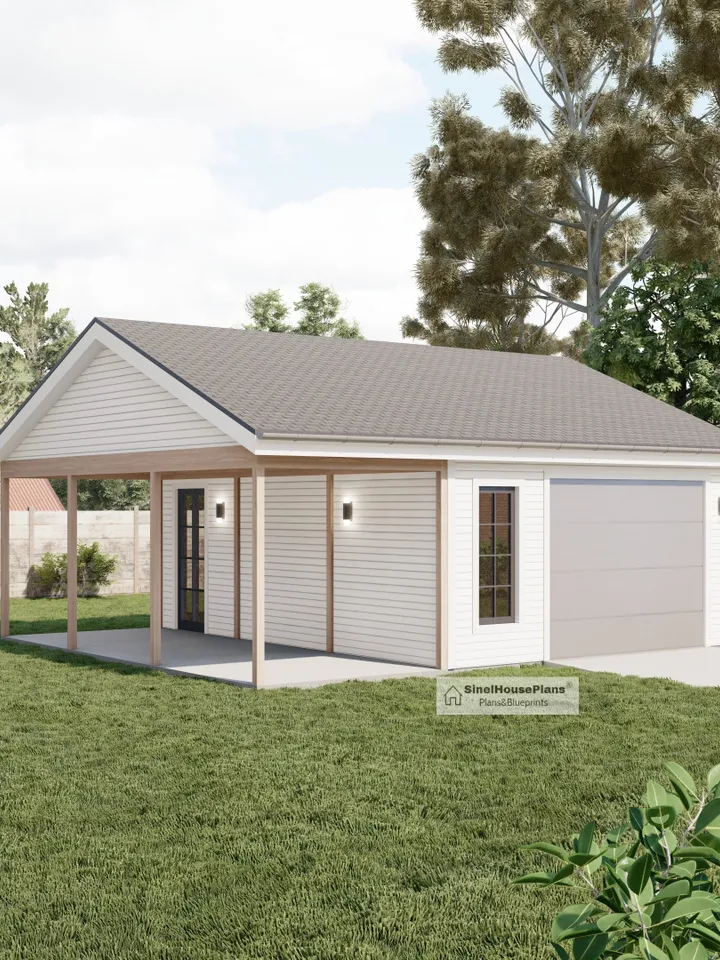

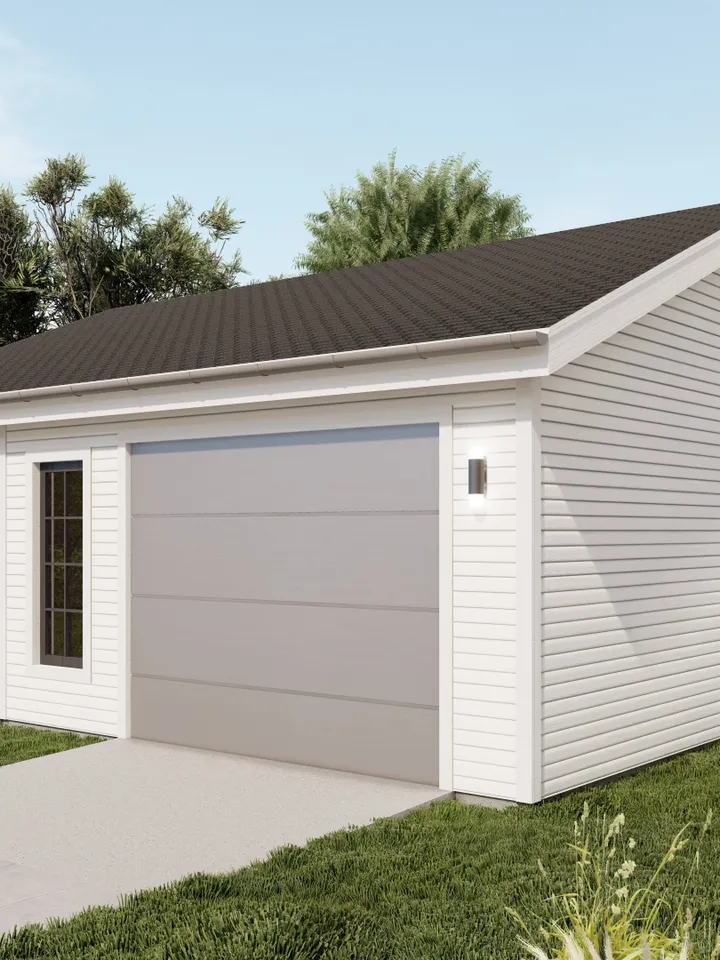

24' x 22 ' Single Car Garage Plan with Porch. One-car garage plan with storage adds functionality to your backyard Garage bay accommodates one car and provides storage space along the right wall; ideal for storage shelves or cabinets Covered porch is just tight for a patio table and grill Windows spill natural light inside the garage and a service door provides convenience. Plan set is drawn at 1/4"=1'/0'' scale and includes the following drawings: Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details are drawn at 3/8" = 1'/0''and 3/4''=1'/0'' scale, and appear as needed throughout the prints. Building dimensions and elements: Width: 24'-0" Depth: 22'-0" Door 1: 9'x7' Standard Foundation - Slab Max Ridge Height - +/-13'- 0" Roof Slope 12/5 Wood frame construction : 2''x4'' Sidewall Height 8'-1'' foot Plan includes: Cover page 1 Disclaimer 2 Floor Plan 3 Foundation Plan 4 Front Wall Elevation 5 Left Wall Elevation 6 Right Wall Elevation 7 Rear Wall Elevation 8 Section A - A 9 Roof Framing Plan 10 Content Window & Door Schedule 11 Details 12 Nails Schedule for Construction 14 Electrical Plan 13 General Construction Notes 15 Material List 16 Print paper sizes : 11.7 x 16.5 inches

١٥ جمادى الأولى

SinelHousePlans

حماية مشتريات Ballwool

في Ballwool، رضاك هو أولويتنا. إذا لم تسر طلبك كما هو مخطط، سنضمن استرداد أموالك في جميع المشتريات المؤهلة — بدون قلق أو عناء.

اعرف المزيد

العناصر القابلة للتنزيل الفوري لا تقبل الإرجاع أو الاستبدال أو الإلغاء. يرجى الاتصال بالبائع إذا كانت لديك أي مشكلة في طلبك.
