2-Car Garage Plan with Loft: 24' x 30' Building Blueprints + Material List

44,75 $

Handgemacht

Digital

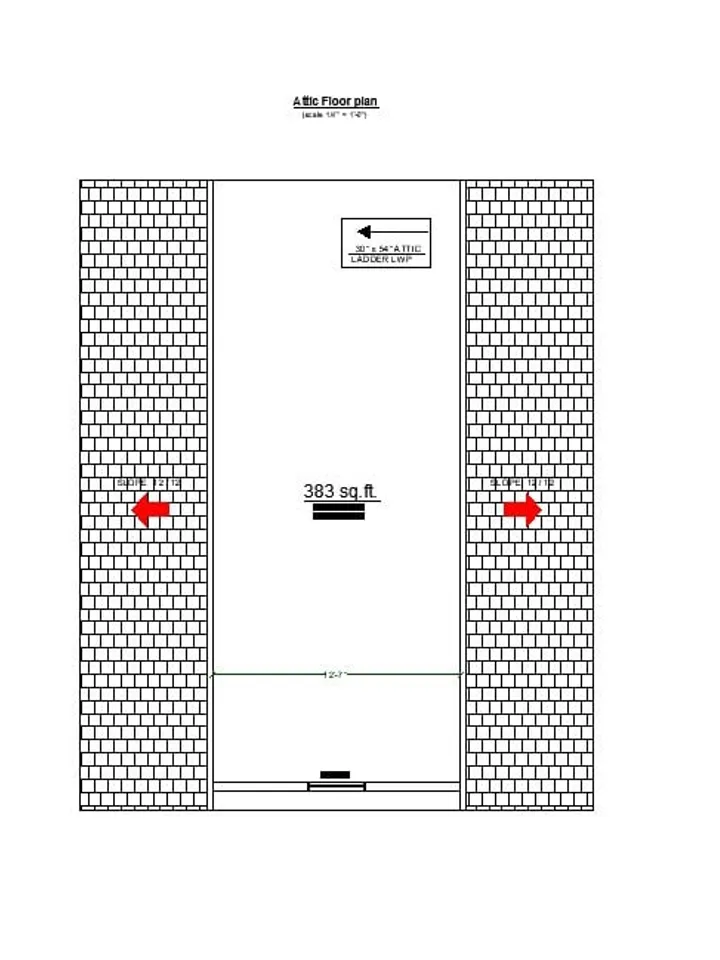

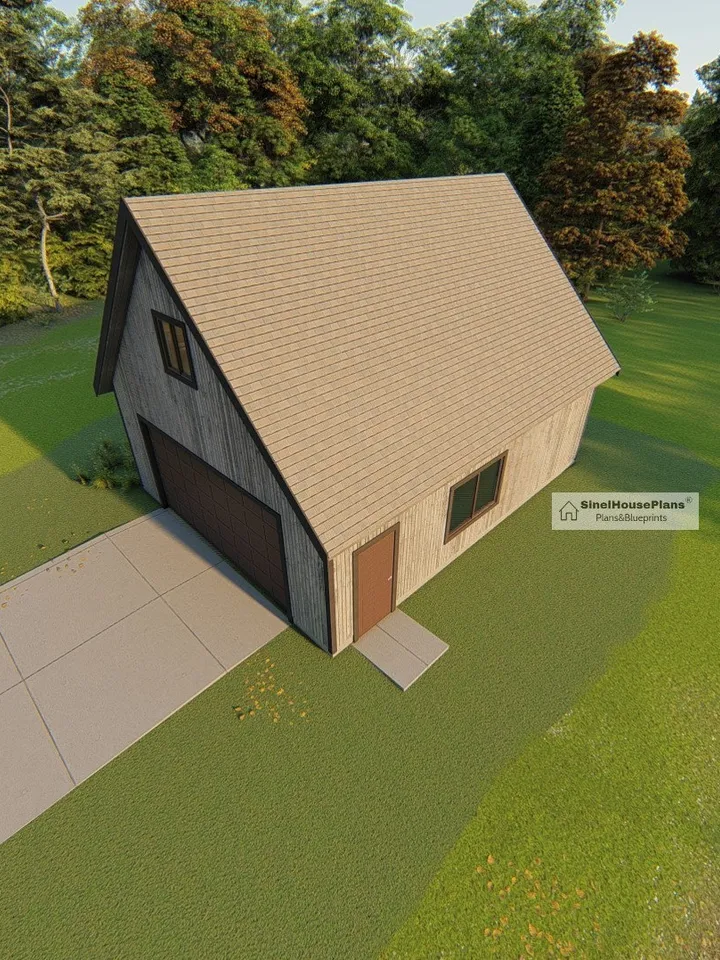

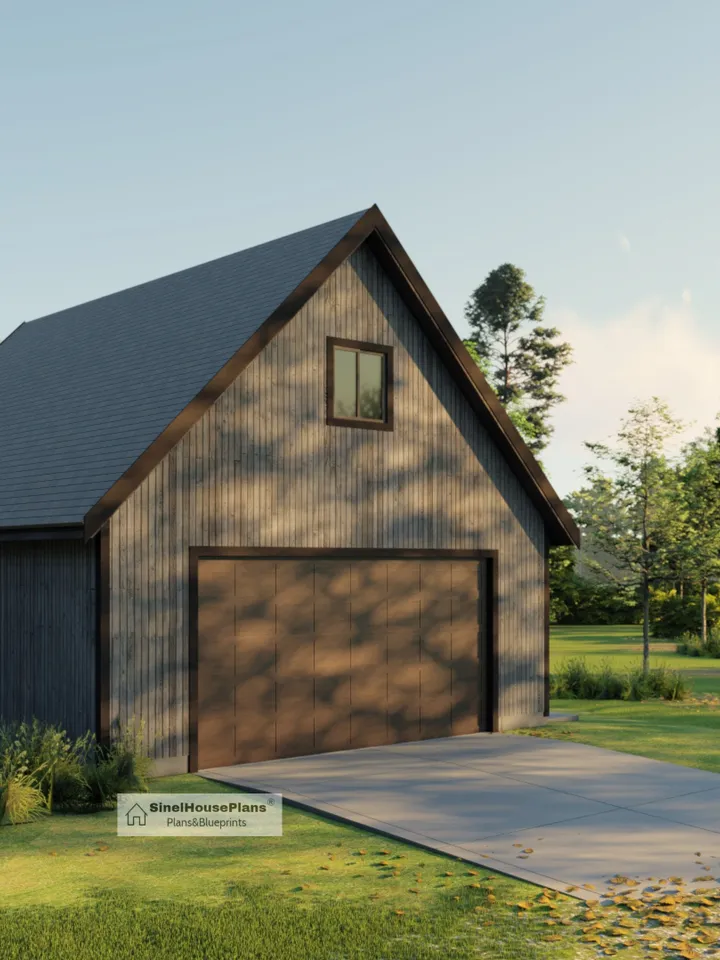

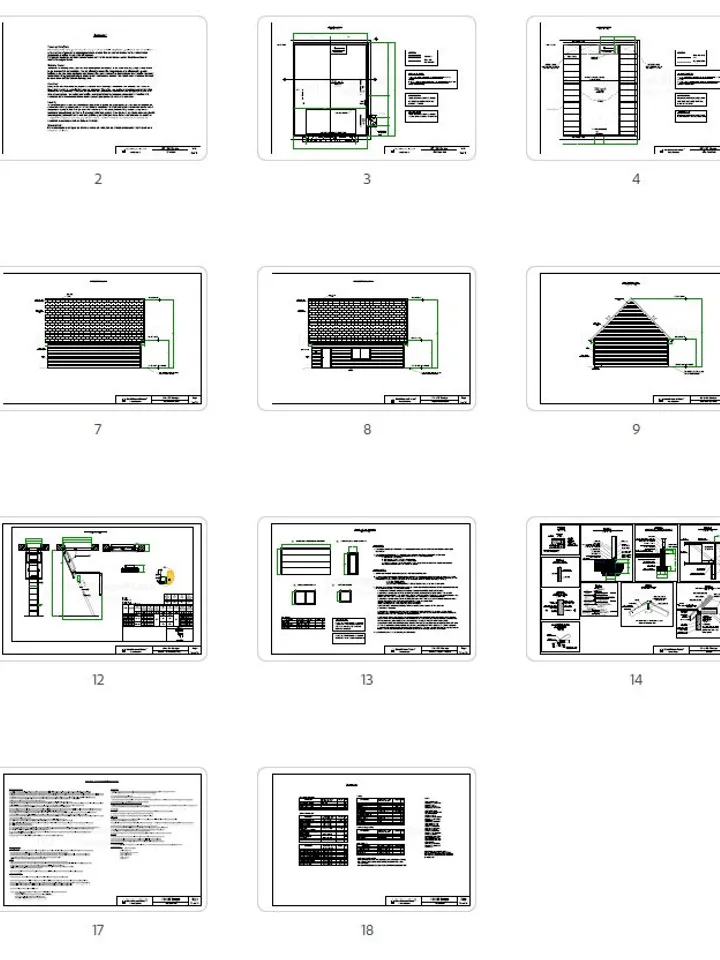

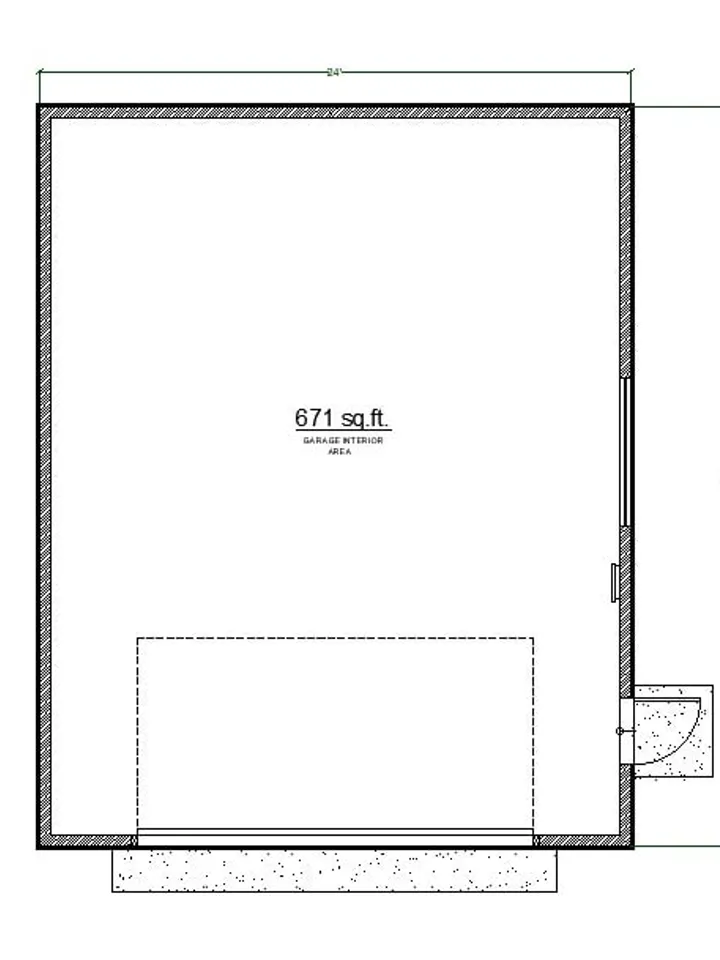

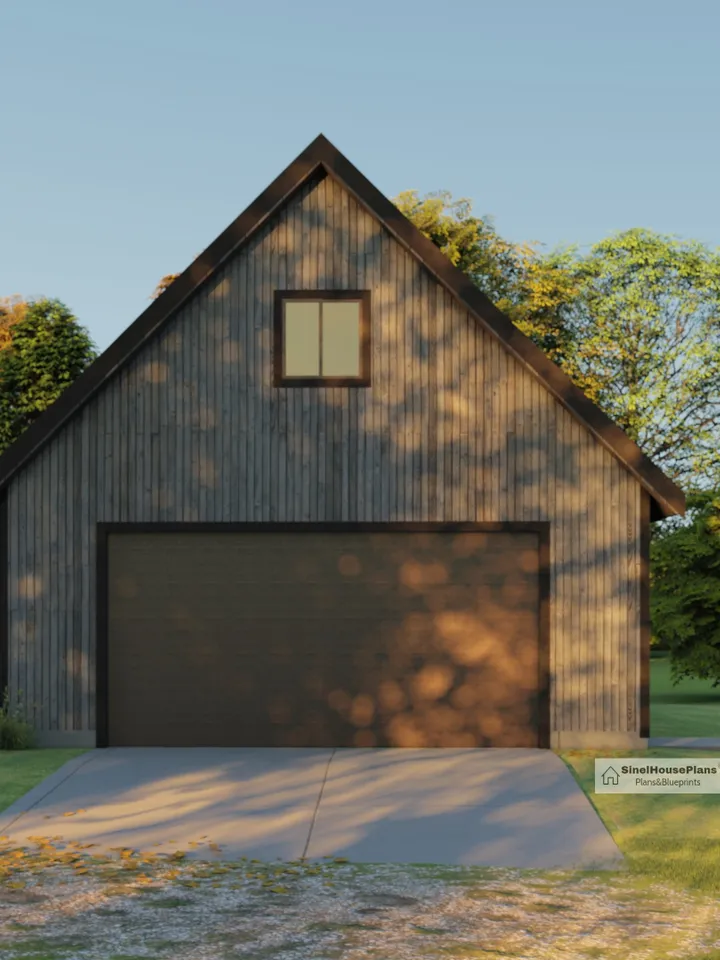

24'x30' Garage architecture plan with Loft place. This is a traditional style garage plan built on a slab foundation. The floor plan has ample room for 2 cars or would work as a stand-alone workshop. A person door is located on the side for easy access. The Vivian also includes an attic space above with window to allow for natural light and fresh air. This is the ultimate garage/workshop/storage building. Plan set is drawn at 1/4"=1'/0'' scale and includes the following drawings: Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details are drawn at 3/8" = 1'/0'' scale, and appear as needed throughout the prints. Building dimensions and elements: width 24' length 30'-0' Height +/- 14' Roof Slope 12/12 Total First and Second Floor Interior Area 1054 Sq/Ft Wood frame construction : 2x6 Sidewall Height 9 foot Plan includes: Cover page 1 Disclaimer 2 Floor Plan 3 Attic Floor Plan 4 Foundation Plan 5 Front Wall Elevation 6 Left Wall Elevation 7 Right Wall Elevation 8 Rear Wall Elevation 9 Section A - A 10 Roof Framing Plan 11 Ladder Technical Drawing 12 Window & Door Schedule 13 Details 14 Alternate Braced Wall Panel 15 Electrical Plan 16 General Notes 17 Material List 18 Print paper sizes : 11.7 x 16.5 inches

6. Nov.

SinelHousePlans

Ballwool-Kaufschutz

Bei Ballwool steht Ihre Zufriedenheit an erster Stelle. Wenn Ihre Bestellung nicht wie geplant verläuft, stellen wir sicher, dass Sie Ihr Geld für alle berechtigten Käufe zurückerhalten – ohne Sorgen, ohne Aufwand.

Mehr erfahren

Sofort-Download-Artikel akzeptieren keine Rückgaben, Umtausche oder Stornierungen. Bitte kontaktieren Sie den Verkäufer, falls es Probleme mit Ihrer Bestellung gibt.

file.txt

0 Byte

Verkäufer kontaktieren
